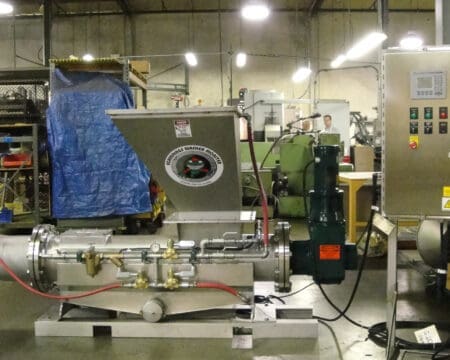

Screenings Washer Monster

The redesigned Screenings Washer Monster^® (SWM-XE) produces ultra-clean discharge using a patented system to grind, wash, compact and dewater debris captured by a screen. This self contained, hopper fed system produces the cleanest screenings discharge in the industry.

The new automated control system, there are three operational stages that automatically select the optimum stage to provide for the proper level of solids washing, allowing the system to reduce volume up to 95%.

Discharged screenings are cleaner, drier and less expensive to dispose of at landfills.

The new low profile tank design is large enough to deal with heavy solids loading and has separate zones for inlet, washing and dewatering. Two inspection ports allow operators to inspect the tank. The low height allows the SWM-XE to fit into challenging installations.

The triple zone spray system eliminates fecal matter and reduce foul odors. An initial spray zone in the hopper washes incoming solids into the grinder.  The second zone is located between the grinder and auger. This patented use of wash water after grinding is what removes fecal matter and provides homogenous, dry discharge.

Paired with JWC’s fine screens, the complete headworks system forms our award winning Monster Separation System^®.

SWM Product Photos 1 Photos	SWM Site Photos 13 Photos

Features and Benefits

Dual Shafted Grinder

• Muffin or Macho Monster^® maximize surface area for efficient washing and compacting

Triple Zone Spray Wash

• Washing breaks-up soft organics for superior cleaning
• Ensures clean, reliable operation and prevents material build-up
• Produces noticeably cleaner discharge

Smart Controller (patented)

• Automatically adjusts cleaning cycles for maximum efficiency
• Sensors protect the system and update control room on performance
• Ethernet and SCADA capable

Screening Trough

• 1/4” (6mm) perforated screen retains material and dewaters it. 1/10” or 1/8” (2, 3mm) openings also available.
• Two 4” (100mm) drain ports allow system to drain quickly
• Multiple access ports for easy inspections

Dual Helix Auger

• Rugged design produces more power to compact screenings
• Dual helix ensures long service life
• Exclusive brush attachment keeps screen clean and minimizes build-up

Roller Base (optional)

• Mobile SWM can be used under multiple screens
• Makes maintenance inspections and access easier

Specifications
